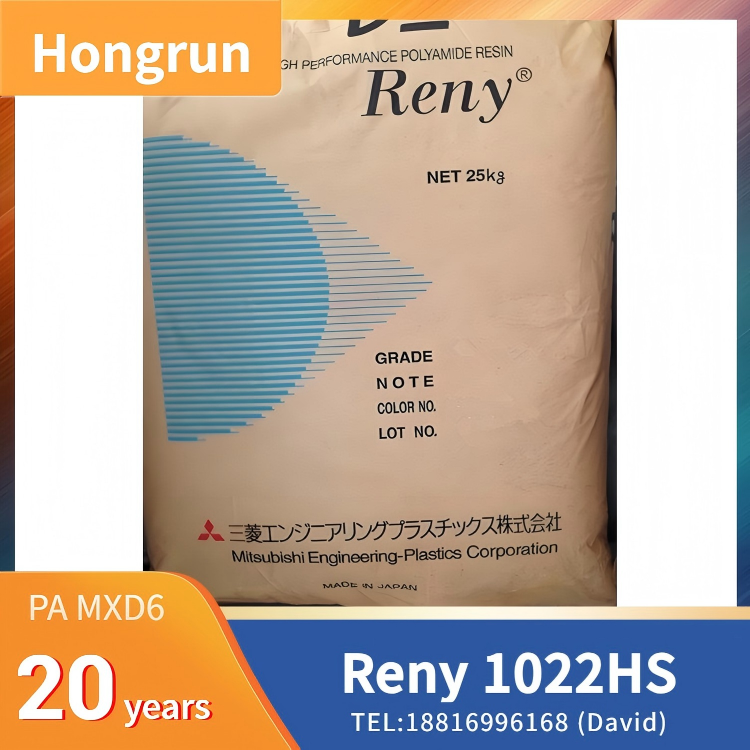

Reny 1022HS
Polyamide (Nylon): Nylon MXD6
GLOBAL POLYACETAL CO., LTD.
Description:
Reny™ 1022HS is a 50 % glass-fibre-reinforced, heat-stabilised poly-xylylene-adipamide (PA-MXD6, PARA) compound developed for injection-moulded parts that must retain very high stiffness and strength after long exposure to elevated temperature. Compared with the standard 1022H grade, 1022HS contains an additional thermal-stabiliser package that extends continuous-use performance to 150 °C (RTI).
Typical Properties (23 °C, ISO test methods)
Density: 1.65 g/cm³
Water absorption – 24 h / 23 °C: 0.16 %
Equilibrium (50 % RH): 1.1 %
MVR (275 °C, 2.16 kg): 3.4 cm³/10 min
Mould-shrinkage – parallel / transverse (2 mm): 0.2 / 0.4 %
Key Features
Very high stiffness (20 GPa) at >40 % weight saving vs. aluminium
Heat-stabiliser package – long-term ageing up to 150 °C (RTI)
Near-isotropic shrinkage → exceptionally low post-mould distortion
Excellent surface finish – ready for painting, metallisation or direct assembly
Low moisture uptake → dimensions & mechanical properties remain stable in humid environments
Good chemical resistance to oils, greases, fuels and common solvents
Typical Applications
Automotive: EV battery tray frames, engine-bay brackets, clutch / brake pistons, connector housings, fuse-box covers
E&E: power-distribution blocks, server chassis inserts, motor end-shields, relay sockets
Consumer & appliance: power-tool housings, appliance frames, thin-wall structural brackets
Compliance
RoHS & REACH compliant; UL 94 HB listed; Yellow Card E41179-231738.
