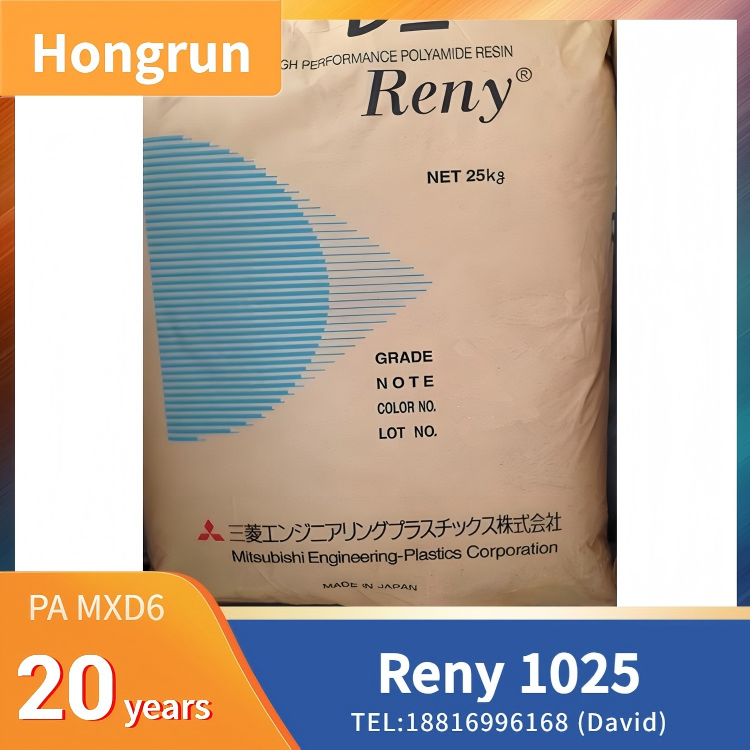

Reny 1025
Polyamide (Nylon): Nylon MXD6
GLOBAL POLYACETAL CO., LTD.
Description:
Reny™ 1025 is a 50% glass-fibre-reinforced poly-xylylene-adipamide (PA-MXD6, PARA) injection-moulding grade.
The compound provides very high stiffness and strength, excellent surface aesthetics, extremely low warpage and minimal moisture uptake, making it a preferred direct replacement for die-cast aluminium, zinc or magnesium parts.
Typical Properties (23 °C, ISO test methods)
Density: 1.67 g/cm³
Water absorption – 24 h / 23 °C: 0.14 %
Equilibrium (50 % RH): 1.0 %
MVR (275 °C, 2.16 kg): 4.7 cm³/10 min
Mould-shrinkage – parallel / transverse: 0.2 / 0.4 %
Mechanical – dry / 50 % RH
Tensile strength: 300 / 245 MPa
Tensile modulus: 20 000 / 18 500 MPa
Flexural strength: 420 / 350 MPa
Flexural modulus: 18 500 / 16 500 MPa
Charpy notched impact: 13 kJ/m²
Thermal
HDT – 1.8 MPa: 231 °C
RTI (elec / mech): 125 / 120 °C (UL 746B)
UL 94: HB @ 1.5 mm
CLTE – flow / cross-flow: 1.0 × 10⁻⁵ / 4.0 × 10⁻⁵ K⁻¹
Drying: 3 – 4 h @ 120 °C (dehumidified dryer); moisture ≤ 0.02 %
Melt temperature: 270 – 280 °C (nozzle 280 °C)
Mould temperature: 120 – 140 °C (high mould T recommended for gloss & low warpage)
Back pressure: 5 – 10 bar
Regrind: ≤ 20 % if re-dried
