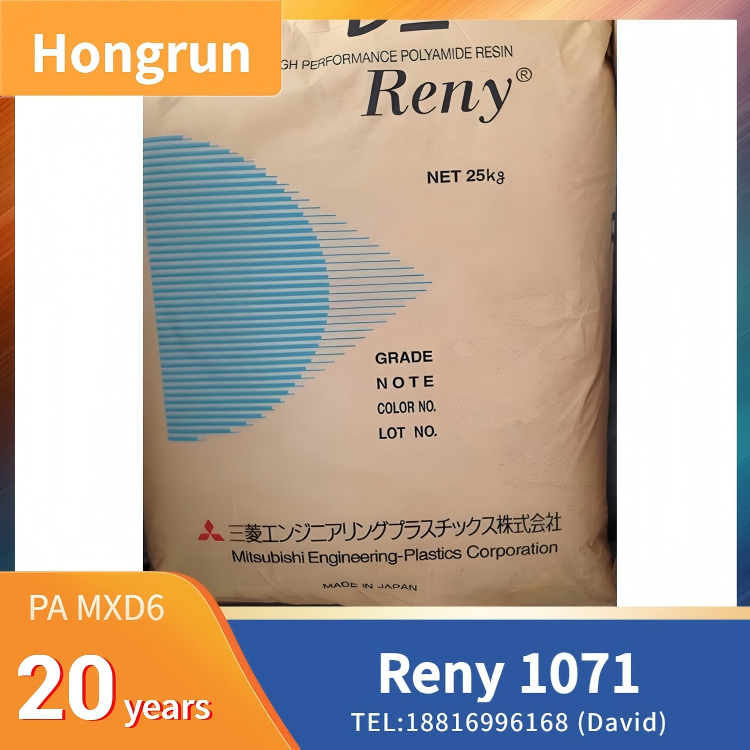

Reny 1071
Polyamide (Nylon): Nylon MXD6
GLOBAL POLYACETAL CO., LTD.
Description:
Reny 1071 is a 55% glass-fibre-reinforced poly-xylylene-adipamide (PA-MXD6, PARA) injection-moulding grade optimised for thick-wall parts.
The compound delivers ultra-high stiffness and strength, excellent dimensional stability, very low warpage and minimal moisture uptake, and is widely used as a direct substitute for die-cast aluminium, zinc or magnesium in automotive, E&E and thick-wall structural applications.
Typical Properties (23 °C, ISO test methods)
Density: 1.70 g/cm³
Water absorption – 24 h / 23 °C: 0.10 %
Equilibrium (50 % RH): 1.5 %
Mould-shrinkage – flow / transverse (2 mm, 130 °C): 0.29 / 0.55 %
Mechanical – dry / 50 % RH
Tensile modulus: 23 700 / 21 500 MPa
Tensile strength (break): 237 / 195 MPa
Tensile strain at break: 1.6 / 1.7 %
Flexural modulus: 20 900 / 19 100 MPa
Flexural strength: 384 / 320 MPa
Charpy notched impact (23 °C): 16 / 15 kJ/m²
Charpy un-notched impact (23 °C): 66 / 60 kJ/m²
Thermal
HDT – 1.8 MPa: 230 °C (dry)
RTI (elec / mech): 125 / 120 °C (UL 746B)
CLTE – flow / transverse: 1.1 × 10⁻⁵ / 2.5 × 10⁻⁵ K⁻¹
UL 94: HB @ 1.5 mm
Processing Guidelines
Drying: > 3 h @ 120 °C (vacuum dryer) or > 12 h @ 80 °C (dry-air dryer); moisture ≤ 0.02 %
Melt temperature: 265 – 275 °C (nozzle 275 °C)
Mould temperature: 120 – 140 °C (high mould T recommended for gloss & low warpage)
Injection speed: medium-high; hold pressure 20 – 150 MPa
Screw speed: 60 – 150 rpm
Regrind: ≤ 20 % if re-dried
Key Features
Ultra-high stiffness (23 GPa) and strength at >45 % weight saving vs. aluminium
Near-isotropic shrinkage → exceptionally low post-mould distortion, ideal for thick-wall parts
High-gloss surface – ready for painting, metallisation or direct assembly
Low moisture uptake → dimensions & mechanical properties remain stable in humid environments
Excellent flow – capable of filling thick sections without sink marks
Good chemical resistance to oils, greases, fuels and common solvents
Typical Applications
Automotive: thick-wall clutch / brake pistons, mirror housings, grille frames, structural brackets
E&E: motor end-shields, power-distribution blocks, connector housings
Consumer & appliance: power-tool housings, appliance frames, thick-wall structural brackets
Compliance
RoHS & REACH compliant; UL 94 HB listed; Yellow Card E41179.
