GLAMIDE TY-891G60S
Polyamide (Nylon): Nylon MXD6+Nylon 66
TOYOBO MC Corporation
Description:
GF60%, Low moisture absorption
Appearance
Natural or black pellets (custom colours available)
Key Features
Ultra-high stiffness & strength (Flexural modulus 23 GPa, Flexural strength 425 MPa)
Excellent dimensional stability / low warpage (3 mm L-bar fall distance 1.8 mm)
Very low moisture absorption (< 0.3 %, 24 h / 23 °C) – properties stay stable in humid environments
Good surface appearance even at high glass load
Superior sliding & wear behaviour vs. standard PA66-GF60
Heat-deflection temperature 230 °C (1.8 MPa) – suitable for e-coat and short-term 200 °C under-hood exposure
Typical Mechanical & Thermal Properties (ISO, 23 °C, 50 % RH)
Density: 1.76 g/cm³
Tensile strength: 280 MPa
Flexural modulus: 23.1 GPa
Flexural strength: 425 MPa
Charpy notched impact: 17 kJ/m² (23 °C), 13 kJ/m² (–40 °C)
HDT 1.8 MPa: 230 °C
HDT 0.45 MPa: 235 °C
Processing Guideline (Injection Moulding)
Pre-dry: 100 °C, 4 h (moisture ≤ 0.05 %)
Melt temperature: 260 – 300 °C
Mold temperature: 80 – 110 °C
Screw: low-compression type (L/D 22–25), check-valve recommended
Venting: 30 – 50 µm deep vents; hardened steel (HRC 55-60) for gate area
Typical Applications
Automotive door-mirror housings, console-box hinges, fuel-filler flaps, power-tool housings, electric-powertrain brackets, sports-equipment components, industrial gears and sliding parts.
Availability

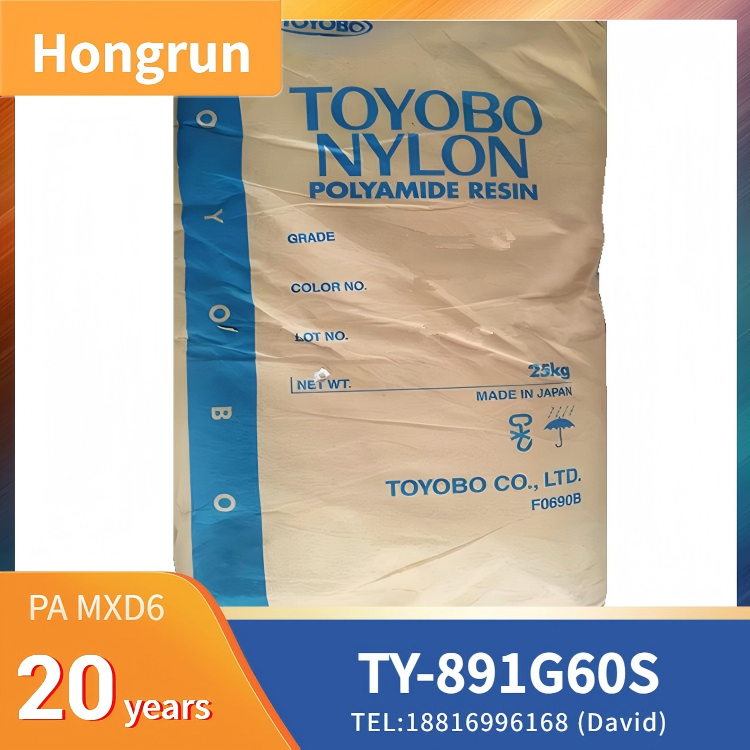

25 kg moisture-proof bags, 750 kg octabins. Global supply through TOYOBO MC network.
